60leds Decorative SMD LED Strip Light , DC12V SMD5630 Flexible LED Strip IP65 for
Quick Detail:
- Red-Green-Blue-White color
- 120leds 3014
- 12V DC
- 14.4W
- White PCB
- CE ROHS certificate
Description:
5630 Flexible strip , RED, GREEN,BLUE and RGB is optional, 30leds/meter and 60leds
12V DC/24VDC, indoor or outdoor waterproof is available.
Applications:
Widely used in Architectural light for canopy, corridor, window, archway ,Backlight for edge lighting for signage ,DIY lights for home use ,Path and contour marking ,Decorative lights for holiday, event, show exhibition,Cover lighting and so on.
Specifications:
|
Tech Date
|
|
|
Model
|
KS-5630IP65-WW
|
|
LED Qty
|
60leds/m
|
|
LED Type
|
5630smd
|
|
LED Power
|
24W/M
|
|
LED Color
|
R/Y/G/B/RGB
|
|
Input Voltage
|
12VDC
|
|
Frequency Range
|
50Hz – 60Hz
|
|
Power Factor
|
>98
|
|
Power Efficiency
|
>85%
|
|
Luminous Efficiency
|
30~35LM
|
|
Color Temperature
|
RED
|
300-400mcd
|
|
GREEN
|
1000-1200mcd
|
|
BLUE
|
200-250mcd
|
|
Lamp Efficiency
|
>85%
|
|
Beam Angle
|
120°
|
|
Working Temperature
|
-40℃ ～ +55℃
|
|
Storage Temperature
|
-25℃ ～ +65℃(25℃best)
|
|
Life span
|
>30000hrs
|
|
Certification
|
CE, RoHS, FCC
|
|
IP Grade
|
IP65/IP67/IP20
|
|
Housing Color
|
R/Y/G/B/RGB
|
|
Net Weight
|
0.3kgs
|
|
Dimension
|
12*0.3*5000mm
|
|
package
|
5m/roll in each Anti-static bag
|
Competitive Advantage:
- Health: Won't cause eye fatigue and helps to protect eye health.
- Safety: Won't do harm to body with no harmful substances such as mercury and lead.
- Color rendering: LEDs for flexible strip lighting applications have been designed to achieve a warm, white light that ranges >80 on the color rendering index (CRI).
- Color temperature: From 2700K~6500K, customers can choose according to requirements.
- High quality: High power factor, constant voltage power supply and constant flux.
- Installation flexibility: Can be installed in any orientation with no restrictions.
Application scope: Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.

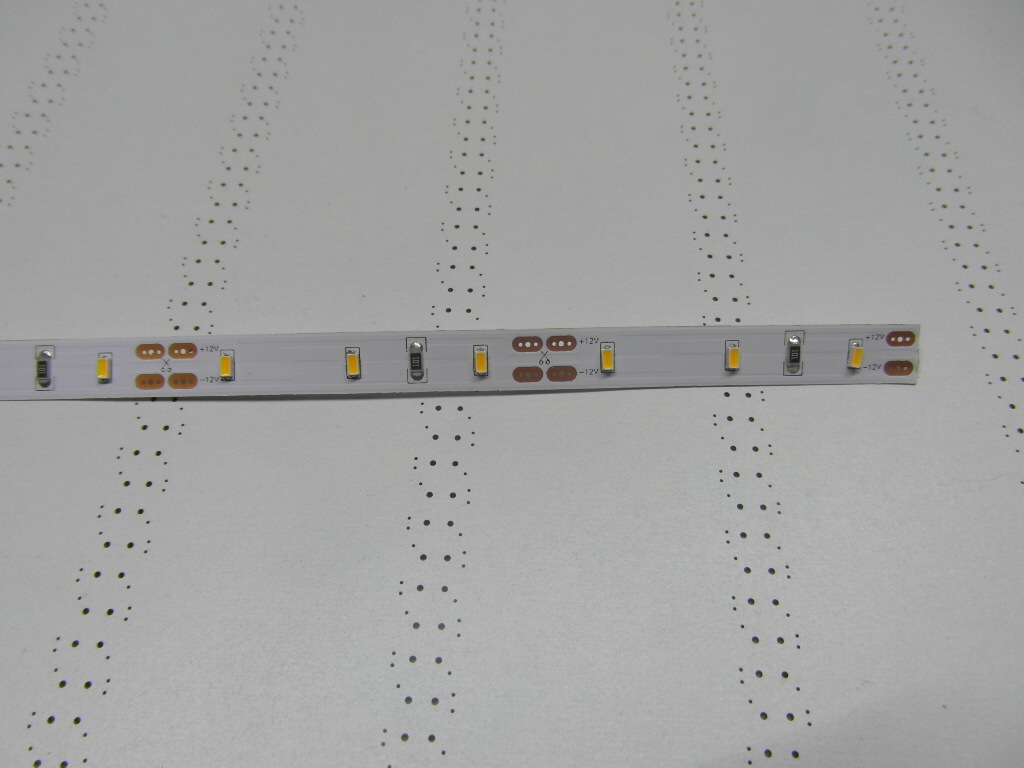

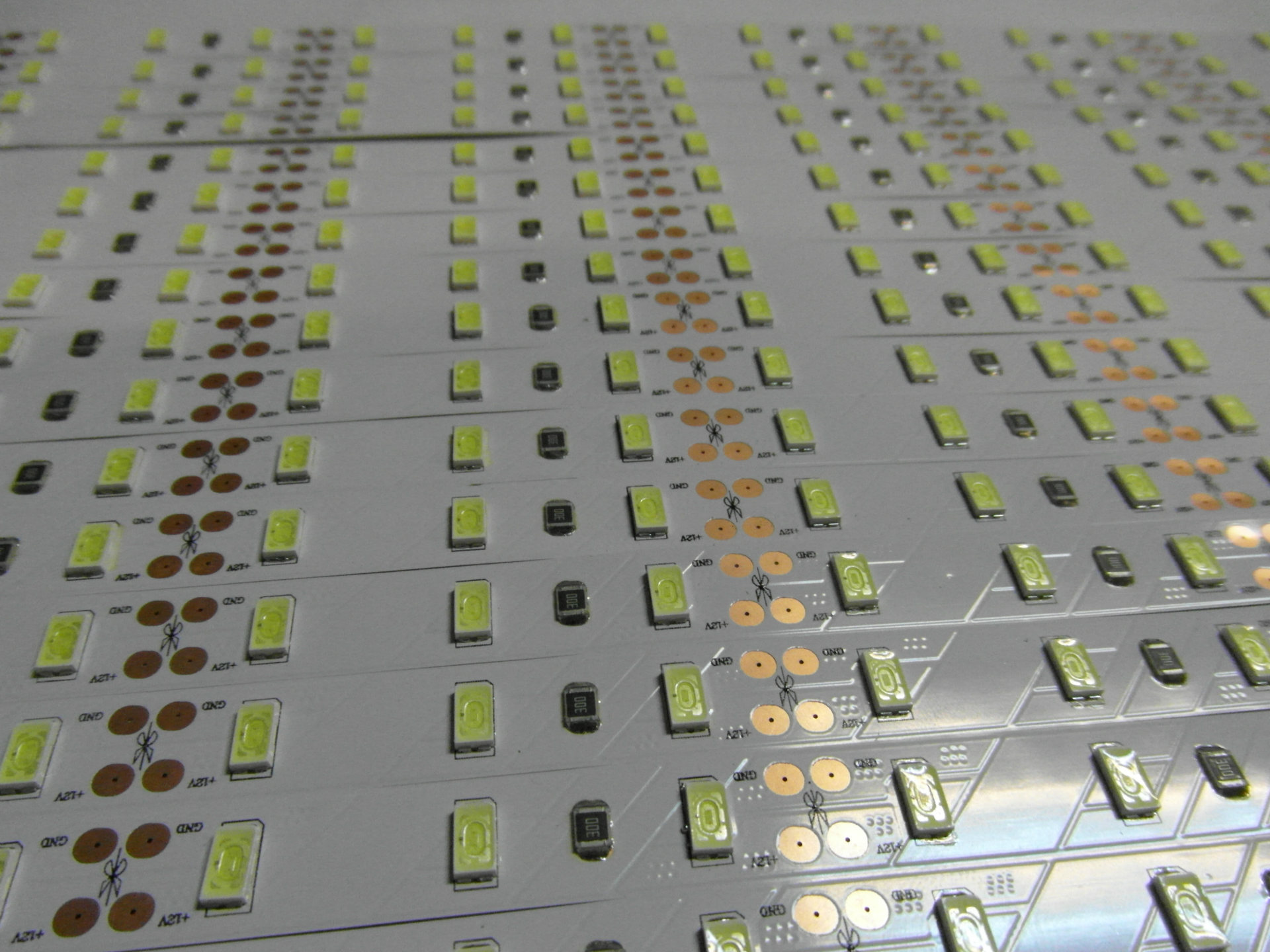

5630SMD LED Strips
